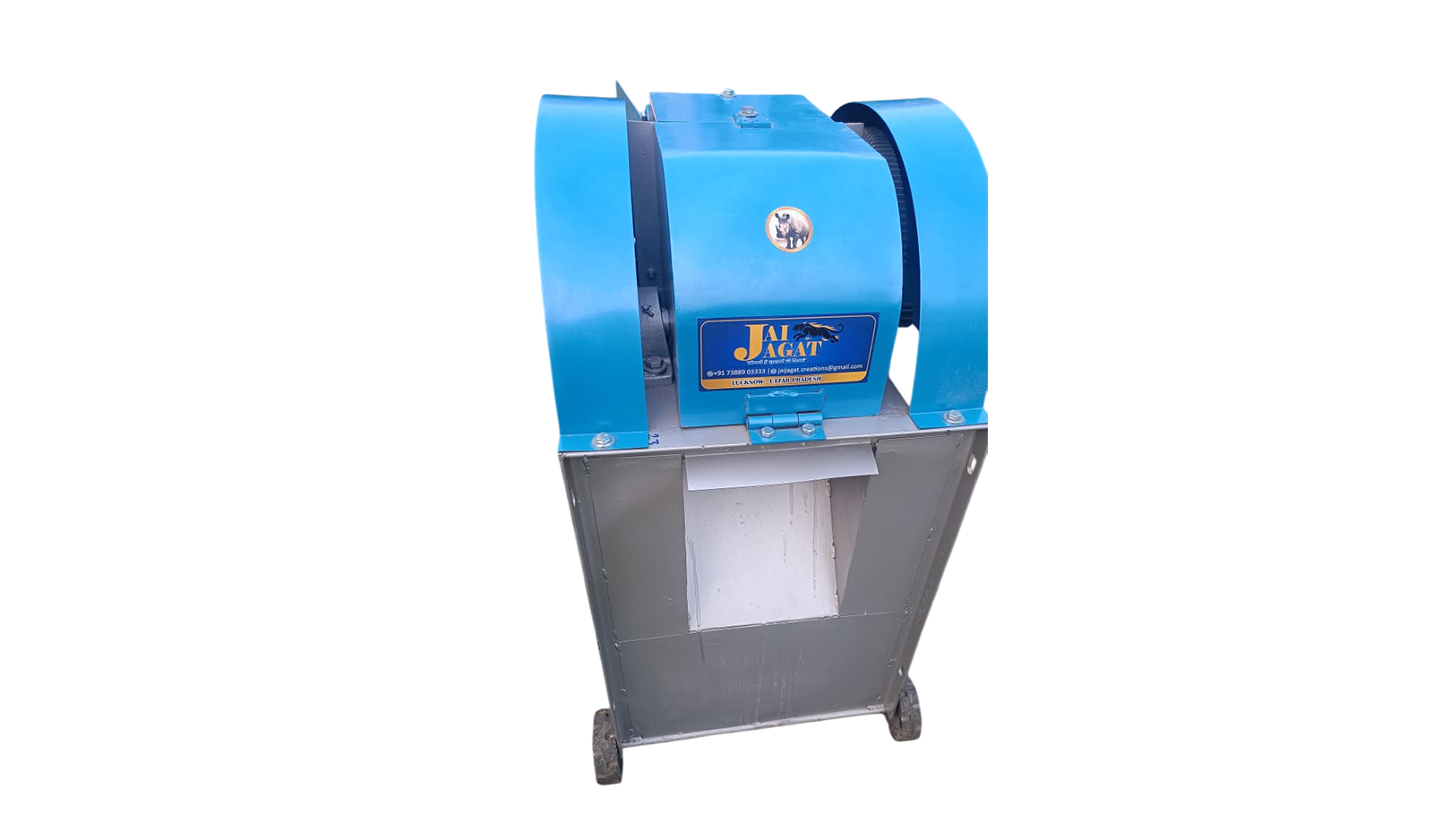

Chaff Cutter Machine

Description

Power operated chaff cutter using a 3HP drive system.
Features copper binding and 1440 RPM.
Mouthpiece to be a minimum of 9 inches wide, in cast iron or mild steel design.
Guaranteed output:
- 200 kg per hour on dry paddy straw bundles using a 3 HP motor.
- 400 kg per hour on green fodder of maize/sorghum.
Strong and sturdy gearbox provided for speed variations and and reversal via levers.
No fodder blowing arrangement.
Appropriately toothed feed rollers provided for holding fodder in dry and green conditions without wrapping around.
Tension springs provided on rollers for proper fodder holding.
Two chopping blades.
Size of chop to be adjustable using the gearbox, about half inch or lower chops.
Major shafts mounted on ball bearings of appropriate size.
Strong MS frame provided, ensuring motor fitting on the side.
Feeding chute provided as per prevailing safety norms.
Drive covers provided as per prevailing safety norms.
Motor set included: 3 HP, Single Phase, 220 V, 1440 rpm, 50 Hz.
Strong motor frame of universal design provided.
Flywheel to have about 24 to 30 inch diameter, V groove belt design, ensuring about 300 RPM.
V belt C section design drive system provided on the chaff cutter and motor set.
Matching cable, 5 meters long, and 32 Amp MCB provided (with copper cable).
